Quadrel Pressure Sensitive Labeler

United Food and Beverage is selling a Quadrel Pressure Sensitive Labeler for 12oz glass bottles. Details for this labeler include -Full Wrap Around Labeler for Round Bottles, Year 1997, Inline pressure sensitive labeler with coder, Equipped with coder, timing wheel, wrap around belt and integrated 8′conveyor, Power requirements are 110VAC/60Hz Single Phase

Item Type: Bottle Labeler
Manufacturer: Quadrel
Model: Versaline
Serial: Q697-074
Year: 1997
Last Use: Dairy
Dimensions: 10 x 5 x 4

$18,000.00

http://www.americanbarrelexchange.com/Listing/Details/194912/Quadrel-Pressure-Sensitive-Labeler

Stainless Steel 3.7 Cu Ft Plate And Frame Filter Press

Stainless steel 3.7 cu ft plate and frame filter press. The 19 plates have an 18″ diameter with a 17″ interior screen area. The 20 frame areas are 1.43″ deep. The plates have a .875″ inlet and outlet. The filter has a manual closure system. The inlet and outlet are connected to two 2″ NPT fittings. This filter is also equipped with a Viking gear pump that is driven by a 3 hp 1165 rpm motor. Requires 230/460 vac 3 phase electrical supply. This is most likely a Star filter press. $5,950.00

http://www.americanbarrelexchange.com/Listing/Details/195033/Stainless-steel-37-cu-ft-plate-and-frame-filter-press

Ertel .9 Cu Ft Chrome Plated Brass Plate And Frame Filter On Carbon Steel Frame

Ertel .9 cu ft chrome plated brass plate and frame filter on carbon steel frame with casters. Serial # EU 256-337BN. There are 1.25″ inlets and outlets on each corner. Equipped with a hand wheel plate compression. The dimensions are 89″ l x 26″ w x 46″ h. Filter has 14 plates and 14 frames. Frames are .5″ thick and 15″w x 15″l. Fair condition. $2,950.00

http://www.americanbarrelexchange.com/Listing/Details/195095/Ertel-9-cu-ft-chrome-plated-brass-plate-and-frame-filter-on-carbon-steel-frame

Sperry .11 Cuft Plate And Frame Filter Press

Sperry .11 cuft plate and frame filter press. Size 8. Type 8. Filter has 1/2″ inlets and outlets at the corners. Filter has a total of 6 plates and 5 frames. The frames have a cake area of 6.5″ x 6.125″ and are 1″ deep. Outside dimensions of plate and frames are 8″ x 8″. It has a mechanical closing system. Overall dimensions of filter on the casters are 40″ l x 20″ w x 46″ h. Serial # X8959. Good Condition. $2,450.00

http://www.americanbarrelexchange.com/Listing/Details/195465/Sperry-11-cuft-plate-and-frame-filter-press

Ertel .25 Cuft Stainless Steel Plate And Frame Filter On Casters

Ertel .25 cuft stainless steel plate and frame filter on casters. Name tag is missing but appears to be an Ertel EDB filter set up with screens on all plates. According to the manufacturer, this can be used when back pressure is a problem. The screens can be removed on inlet plates to make a conventional plate and frame filter with .25 cuft of capacity. 1″ inlets and outletes. Equipped with hand wheel plate compression. Good condtion. (Have spare frames and screens) $3,900.00

http://www.americanbarrelexchange.com/Listing/Details/195679/Ertel-25-cuft-stainless-steel-plate-and-frame-filter-on-casters

2800 gal. stainless fermenter $7500

Santa Rosa Stainless fermenting tank, 304ss, 74″ diameter, 157.5 ” high, 4′ channel cooling jacket in center, one 18″ round racking manhole, one 10″ top manhole, 2×2″ tc outlets. Good shape,$10k with 32″ mild stand.

http://www.americanbarrelexchange.com/Listing/Details/195914/2800-gal-stainless-fermenter

2520 gal Stainless Fermenting Tank

304ss, 4′ dimpled cooling jacket in center. One 21″ oval racking manway, 18″ top manway, 2×2″ tc outlets. Good shape. $9.5k with mild steel 32″ stand. $7,000/$9500 with stand.

http://www.americanbarrelexchange.com/Listing/Details/196141/2520-gal-Stainless-Fermenting-Tank

#Equipment #Used #Tanks #Fermentation

http://www.americanbarrelexchange.com/Content/listingImages/20150619/0fa7d56a-8db5-4e58-bdf9-d94f6cf2094f_fullsize.jpg”>

iStill 250 (Shipping Included!)

The iStill 250 is a fully automated still that enables the distiller to make both taste rich as well as pure products. With the iStill 250 you can make whiskey, gin, brandy, rum, and vodka. You can choose pot distillation or pure distillation, stripping as well as finishing, and you can dial in automated cuts for heads, hearts, and tails.

The iStill 250 has a 75 gallons boiler that’s electrically heated. Phased power (204 – 240v) at 80 amps is needed. The unit comes with power management (anything from 6 to 12 KW), carbon filter (to clean up your vodka), glass catalyst, gin infusion chamber, and easy lifting system. The packed column is managed automatically to give you maximum control. The system integration, control systems, and highly advanced column means the iStill 250 can just as easily produce a whiskey at 62% as it can produce a vodka at 96%. You dial in what you want, the automation makes sure you get it … over and over again.

The iStill 250 is delivered in a crate and is shipped by airplane and truck to the doorstep of your distillery. For the most part it is pre-assembled. Final assembly, connection to water and electricity, and prior to run testing usually takes 2 hours. An assembly instruction is provided, as is Skype Support.

Shipping is included in the price. Buyer is responsible for clearing and any additional charges. $9,995.00 Per Item

http://www.americanbarrelexchange.com/Listing/Details/184252/iStill-250-Shipping-Included

#Equipment #New #Stills #Electric #100gal

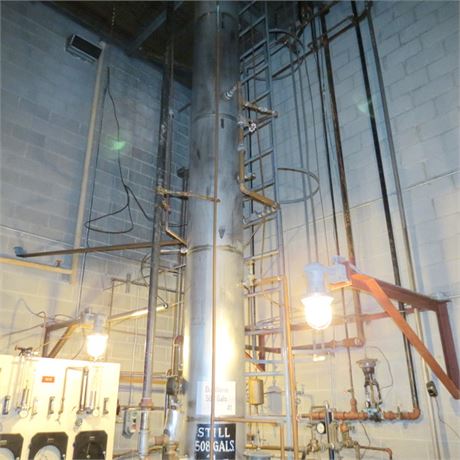

Stainless Steel Distillation Column System

Stainless steel distillation column system. The system when last used had 5% alcohol intake and a produced a 95% final product. System includes an 18″ diameter x 45′ tall (40) valve tray stainless steel distillation colum. System also includes the reboilers, condensers and major piping, valves, pump, controls, etc. that were needed to make the system work. Dismantled and ready to ship. Good condition. $54,950.00

http://www.americanbarrelexchange.com/Listing/Details/191562/Stainless-steel-distillation-column-system

#Equipment #Used #Stills

Artisan 120 Gallon Gin Potstill for Sale

Artisan 120 Gallon Gin Potstill for Sale ( http://ow.ly/OBDCA )

This beautiful Potstill was designed as a dedicated gin still. It has 2 botanicals baskets and Dephegmater, and 120 gallon capacity. It is specifically designed to recieve 1- 55 gallon barrel of GNS, diluted down with water 1:1 for redistillation to gin. It has a port for a optional agitator. It is steam Jacketed: recommended 120 lbs/hr at 15 psi for optimum running. It has a high efficiency product condenser for cold spirits output with less than 2 gpm cooling water flow. Currently listed at $25,000.00

#distillers #still #barrelbid
